December 06, 2016

During October 2016 I read an article on Into Robotics titled: "I Built This Autonomous Robot To Detect And Avoid Obstacles. The Code Is Included.

This is a simple autonomous robot able to detect and avoid obstacles. I use a cheap 4WD robot platform, an Arduino UNO, and a cheap HC-SR04 sensor [Links at site].

The robot is programmed to drive forward till an obstacle is detected. Then it turns the sensor left and right. Compare the values returned by the ultrasonic sensor and take a decision.

This is the Arduino code:" [snip] ... so I decided to see what I could come up with. ~@~



Autonomous Tank Robot
for detection and avoidance of obstacles
Inspired by Calin Dragos-George @ intorobotics.com

Tank

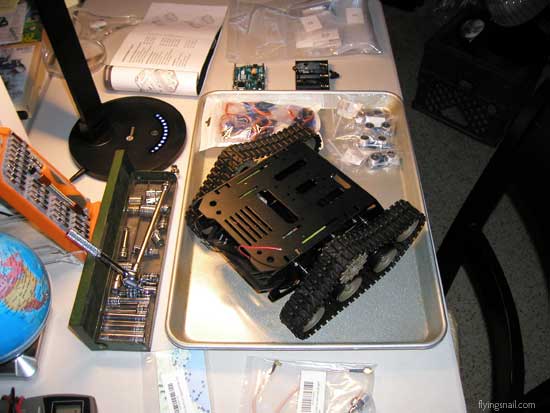

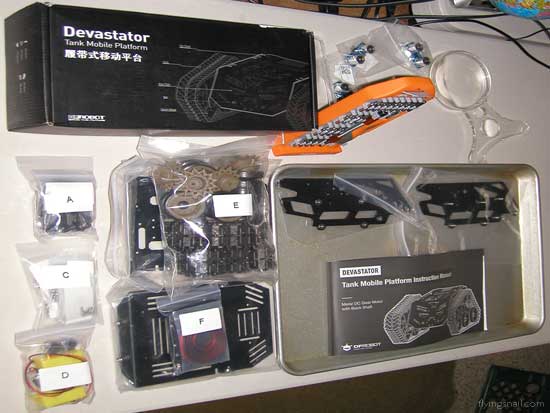

Devastator Tank Mobile Platform @ Amazon

Tank

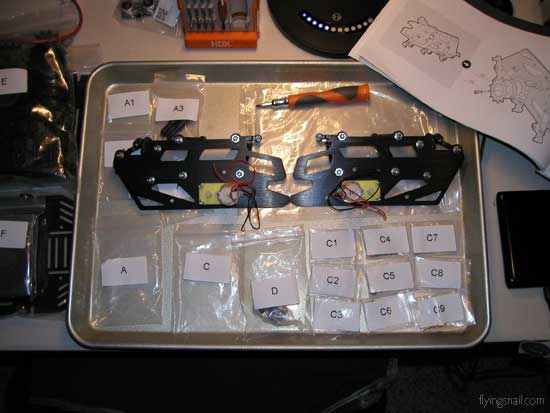

Devastator Tank Mobile Platform 1st stage assembly

Tank

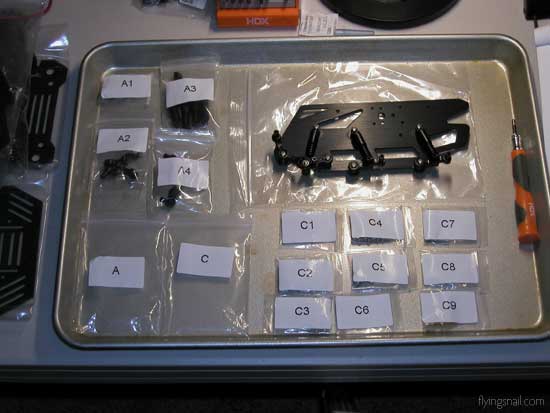

Devastator Tank Mobile Platform 2nd stage assembly

December 21, 2016

Tank

Devastator Tank Mobile Platform 3rd stage assembly

December 31, 2016

Tank

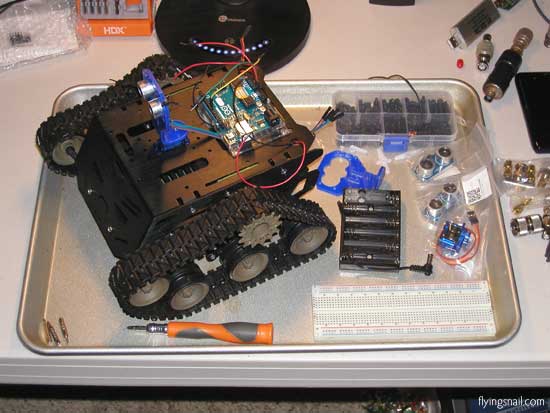

Devastator Tank Mobile Platform 4th stage assembly

Work In Progress
