Amateur Radio Public Seismic Network
Current Settings: ADC Bits: 24 SPS: 10
[Note: The following settings are NOT 'written in stone' settings. These settings are some of the experimental settings I have used or am using and provide as an ARPSN WinSDR aid. Recent ADC Bits: 24 SPS: 10 settings were made to replicate Dr. Randall D. Peters VolksMeter for data collection and SOME of the (following) settings are personal to the computer and hardware I am using == YMMV.]
Important System Settings

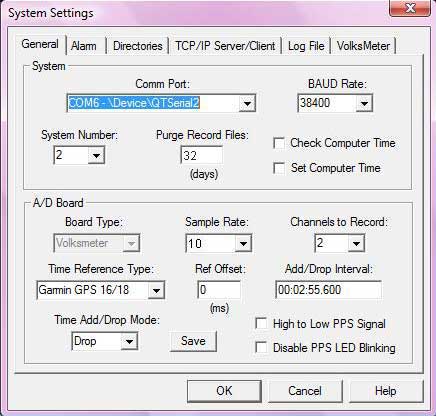

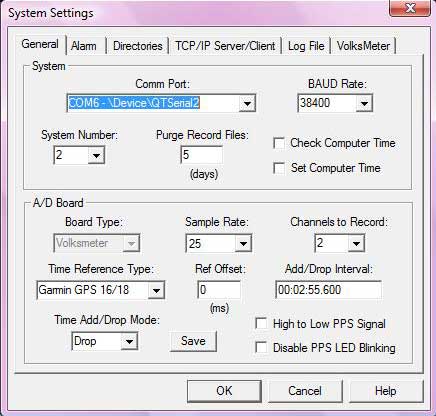

System Settings - General

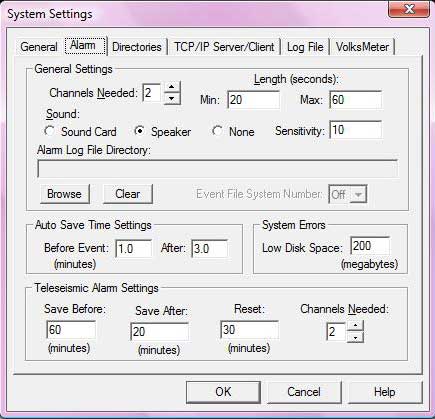

System Settings - Alarm

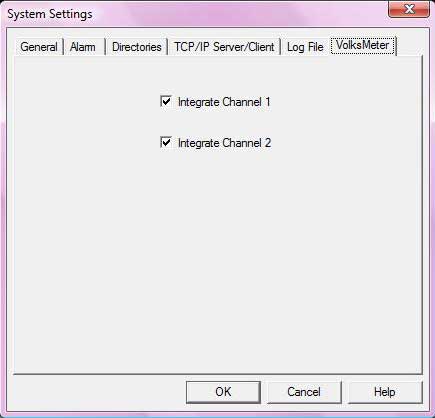

System Settings - VolksMeter
Important Channel Settings
Channel One
Channel 1 & 2 Settings Are Near Identical

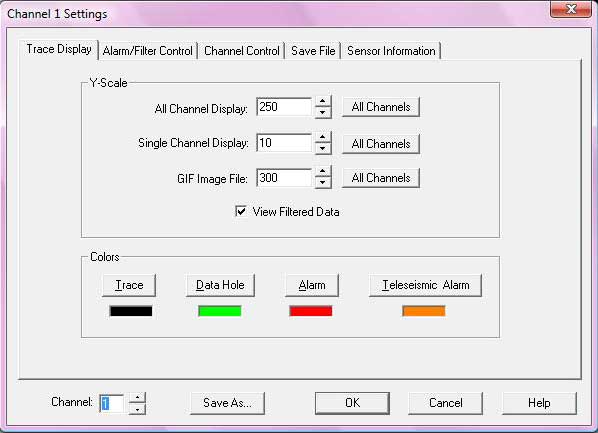

Channel 1 - Trace Display

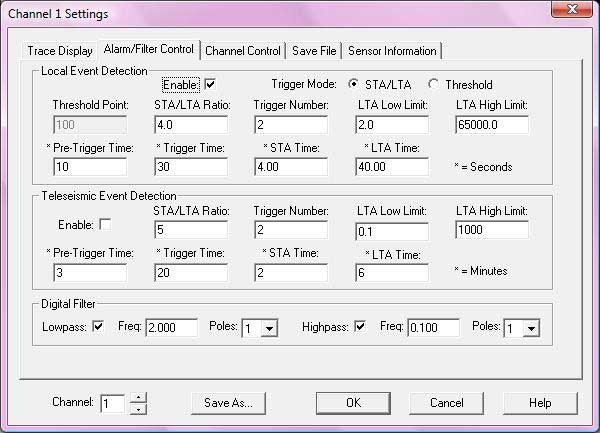

Channel 1 - Alarm/Filter Control

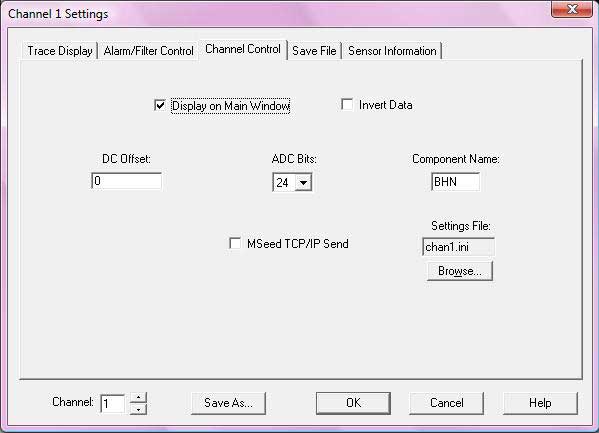

Channel 1 - Channel Control

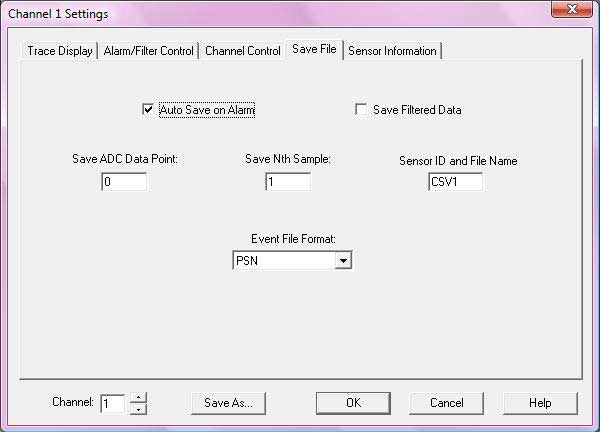

Channel 1 - Save File

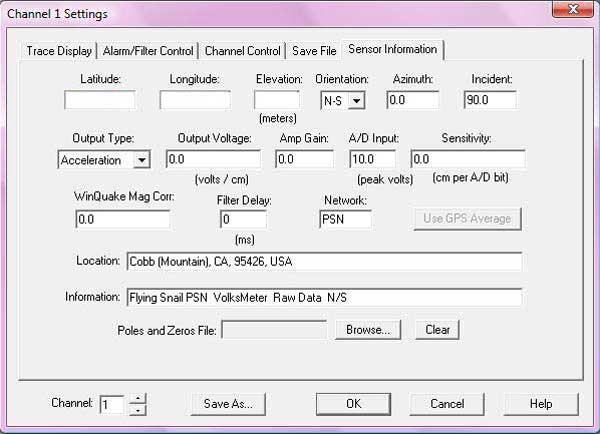

Channel 1 - Sensor Information
Channel Three
Channel 3 & 4 Settings Are Near Identical

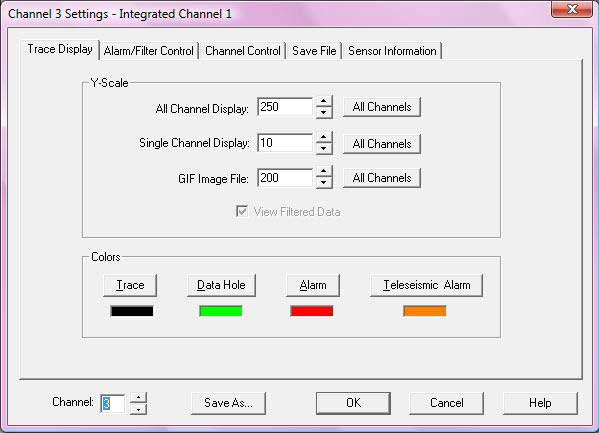

Channel 3 - Trace Display

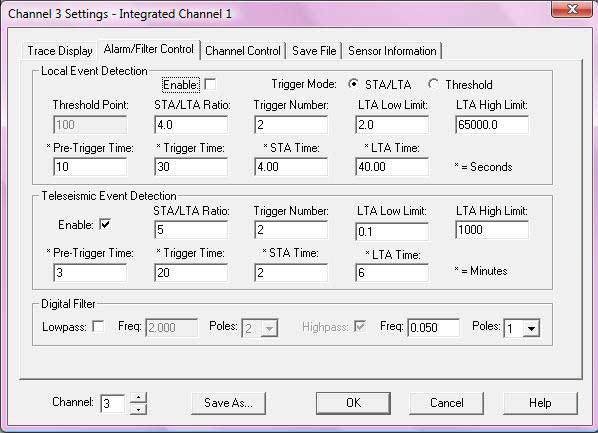

Channel 3 - Alarm/Filter Control

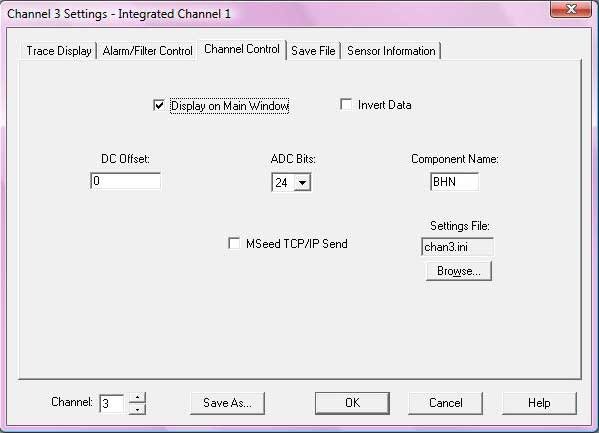

Channel 3 - Channel Control

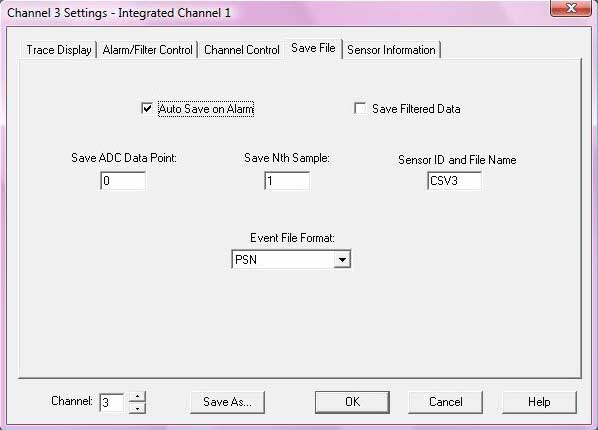

Channel 3 - Save File

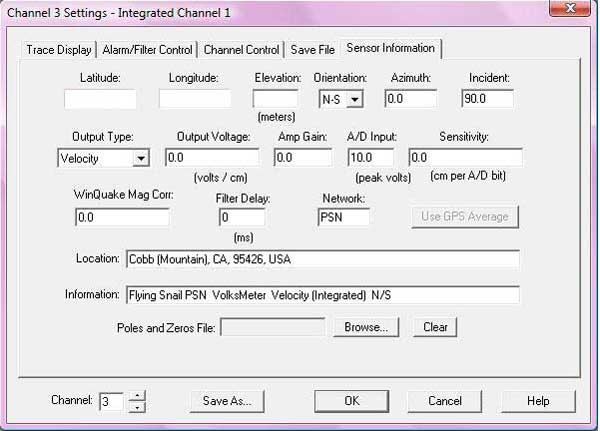

Channel 3 - Sensor Information
VolksMeter GIF Settings
[Note: GIF settings remain the same with all ADC Bit and SPS settings]
Channel One & Two GIF Settings
There are no FILTERS on Channel 3 & 4

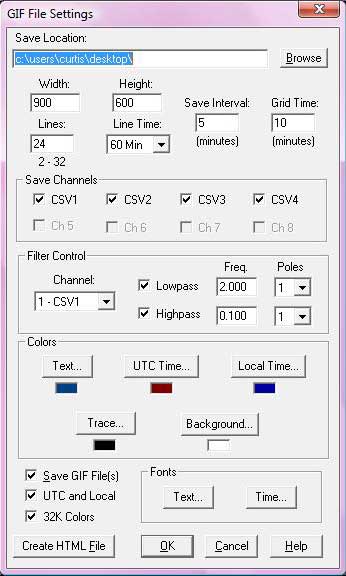

Channel 1 GIF Setting

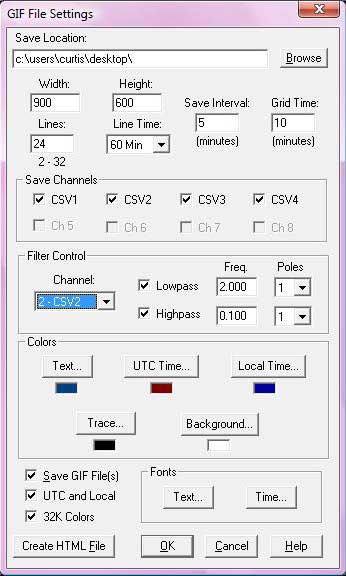

Channel 2 GIF Setting
VolksMeter Previous Settings
ADC Bits: 24 SPS: 25
Important System Settings
SPS: 25 Channel Settings Are Identical to Current Channel Settings Above
